The North American XB-70 Valkyrie: A Cold War Aviation Marvel

The North American XB-70 Valkyrie was one of the most ambitious and advanced aircraft developed during the Cold War. With its stunning design, Mach 3 capability, and revolutionary technologies, the XB-70 became a symbol of the cutting-edge aerospace engineering of the 1960s. Although it was never deployed for combat and only two prototypes were built, the XB-70 remains a key milestone in aviation history, influencing future aircraft designs and pushing the boundaries of what was possible in high-speed flight.

The Genesis of the XB-70

The XB-70 was conceived as a strategic bomber capable of flying at extremely high altitudes and speeds to outrun enemy interceptors and surface-to-air missiles. In the late 1950s and early 1960s, the U.S. Air Force sought a new bomber that could penetrate Soviet defenses during the Cold War. The goal was a bomber that could fly at speeds in excess of Mach 3 (over 2,000 mph), a speed fast enough to avoid enemy radar and missile systems while delivering a nuclear payload. The bomber also needed to be capable of sustained high-speed flight, as previous bombers were too vulnerable at lower speeds and altitudes.

North American Aviation, the company behind the design, was tasked with developing this cutting-edge aircraft. The XB-70 program began in 1955 under the U.S. Air Force’s Advanced Technology Bomber program. The design was revolutionary, pushing the limits of materials, propulsion, and aerodynamics. The aircraft was expected to offer a combination of speed, range, and survivability that would allow it to perform strategic bombing missions deep into enemy territory, particularly in the Soviet Union.

Design and Specifications

The XB-70 was a true technological marvel of its time, combining sleek aerodynamics with powerful engines and cutting-edge design features. The aircraft was powered by six General Electric YJ93 turbojet engines, specially designed for the sustained Mach 3 performance required by the bomber. These engines were equipped with afterburners to maximize thrust and enable the aircraft to reach speeds over 2,000 mph. The YJ93 engines were an essential component of the Valkyrie’s design, providing the necessary power for high-speed flight at altitudes where drag and air resistance were much lower.

One of the most unique features of the XB-70 was its variable-sweep wing design, which allowed the wings to adjust their angle depending on the speed and flight conditions. At lower speeds, the wings could be extended for better lift and stability, while at higher speeds, they could be swept back to reduce drag and improve performance. This design was essential for a bomber that needed to operate efficiently across a wide range of speeds and altitudes.

In addition to its impressive speed, the XB-70 also boasted advanced avionics for its time. These systems included radar, navigation, and flight control systems designed to enable the aircraft to operate at extremely high altitudes and speeds while maintaining precise control. The cockpit of the XB-70 was equipped with multiple flight instruments and heads-up displays to aid the pilots in maintaining control during high-speed flight.

The Valkyrie was designed with aerodynamic efficiency in mind. The aircraft’s fuselage had a sleek, almost futuristic appearance, with sharp lines and curves that helped minimize drag while maximizing stability at supersonic speeds. The bomber’s shape was also carefully designed to withstand the intense heat generated by sustained high-speed flight, with heat-resistant materials used throughout the airframe.

Performance and Capabilities

The XB-70’s performance was truly groundbreaking. The bomber was capable of flying at Mach 3 (over 2,000 mph), which was nearly three times the speed of sound. At this speed, the aircraft could cover vast distances in a short period, making it an ideal platform for penetrating heavily defended airspace. The XB-70 was also capable of flying at extremely high altitudes, up to 70,000 feet—well above the range of most enemy fighters and surface-to-air missiles at the time.

In addition to its high-speed capabilities, the XB-70 had a substantial operational range, allowing it to perform long-range strategic missions. The aircraft could carry up to 30,000 pounds of payload, including nuclear bombs, making it an effective tool for delivering a devastating strike on enemy targets deep within Soviet territory. The high speed and altitude of the bomber made it difficult for enemy interceptors to catch or engage the aircraft, providing a level of survivability that other bombers simply could not match.

However, as impressive as its capabilities were, the XB-70’s design also introduced significant challenges. The aircraft’s high speed generated extreme levels of heat, requiring advanced materials and engineering to ensure the structural integrity of the airframe. The six-engine configuration, while providing ample power, added weight and complexity to the aircraft, and the sheer size of the bomber created logistical challenges in terms of maintenance and operations. Additionally, the bomber’s size and speed made it difficult to integrate with existing military infrastructure, such as airfields and hangars.

The Prototype Program and Testing

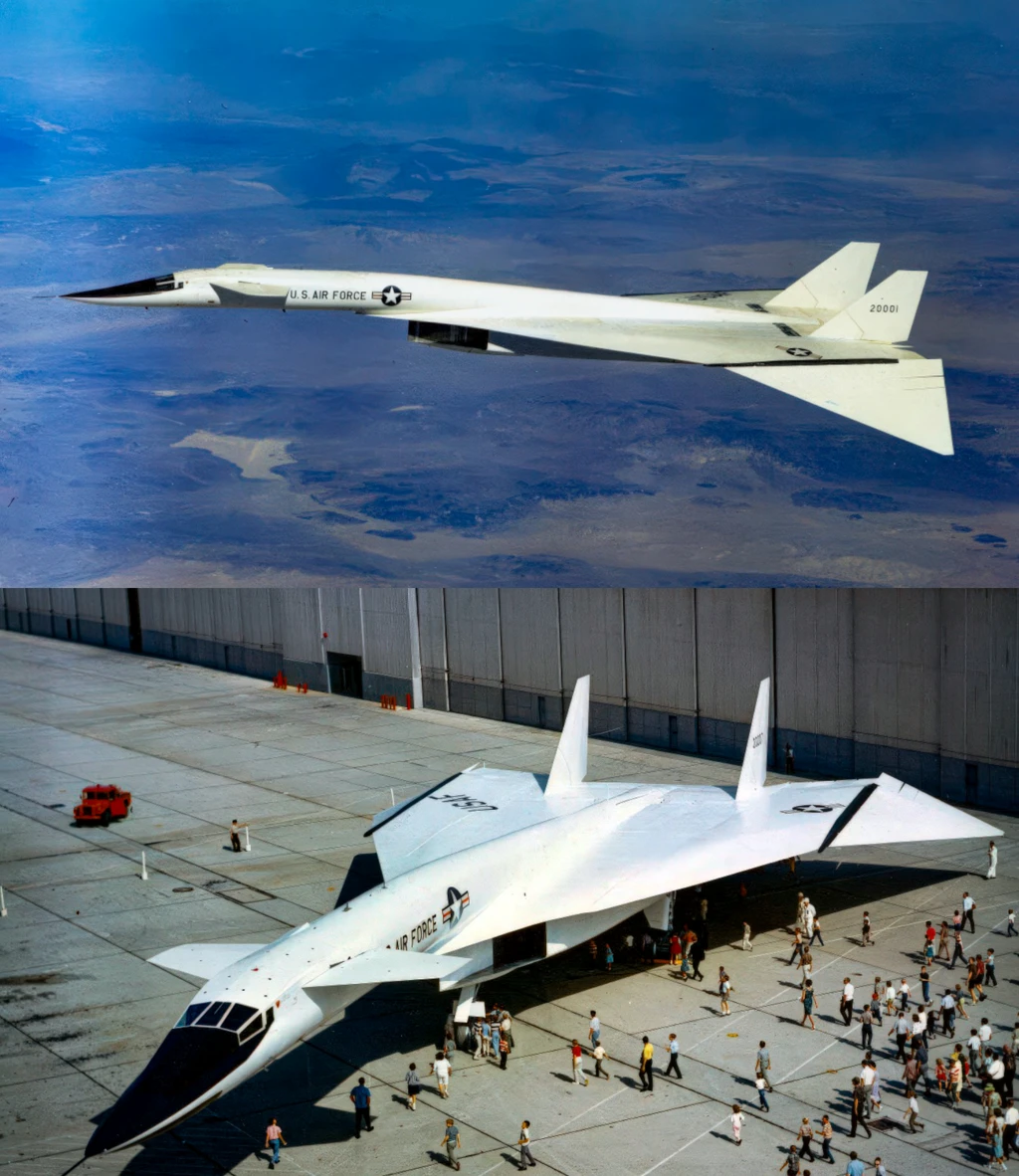

Two prototypes of the XB-70 were built: #1 (62-0001) and #2 (62-0002). Both aircraft were used for a series of test flights to demonstrate the viability of the design and the performance capabilities of the bomber. The prototypes were used to gather data on supersonic flight, aerodynamics, and the effectiveness of the variable-sweep wing system. However, the testing program was fraught with challenges.

The first flight of the XB-70 took place on September 21, 1964, with test pilot Joseph A. Walker at the controls. The aircraft flew at subsonic speeds during initial tests, with its first supersonic flight occurring shortly afterward. The aircraft demonstrated its potential, achieving Mach 2 during testing and performing several high-speed flights.

However, the aircraft faced several obstacles that ultimately limited its future success. While the XB-70 was a technological marvel, it was also extremely expensive to build and operate. The high costs, combined with its operational limitations and the development of more advanced technologies, such as intercontinental ballistic missiles (ICBMs) and long-range bombers like the B-52 Stratofortress, led to the cancellation of the XB-70 program in 1969.

The Tragic Accident

One of the most well-known incidents involving the XB-70 occurred during a photo mission on June 8, 1966, when the second prototype (62-0002) was involved in a mid-air collision with a North American F-104 Starfighter. The F-104, flown by Lieutenant Colonel Harold J. “Joe” O’Brien, collided with the XB-70 during a photo opportunity, killing both pilots of the F-104 and severely damaging the XB-70 prototype. The incident marked the end of the test flight program for the aircraft, and with it, the future of the XB-70 as a combat aircraft was effectively sealed.

Legacy of the XB-70

Despite the end of its operational life, the North American XB-70 Valkyrie remains an important milestone in aviation history. Its high-speed, high-altitude performance and cutting-edge technology were ahead of their time and influenced the design of future supersonic aircraft, including the B-1 Lancer and the B-2 Spirit.

Today, the XB-70 is remembered as one of the most ambitious aircraft projects ever undertaken. Only one of the two prototypes survives: 62-0001, which is on display at the Smithsonian National Air and Space Museum in Washington, D.C. The legacy of the Valkyrie lives on as a testament to Cold War-era innovation and the pursuit of speed and technology in aviation.

Conclusion

The North American XB-70 Valkyrie remains one of the most stunning pieces of Cold War aviation engineering, known for its futuristic design, extreme performance, and pioneering technologies. Though the aircraft never entered active service, its development pushed the boundaries of aviation and paved the way for future generations of aircraft. The XB-70’s brief but impressive existence will forever be remembered as a testament to the ambition and technological innovation that characterized the Cold War era.
